消耗品高品質の材料組織分析サンプル作製に

QPREPで、QATMは材料組織分析用試料作製と分析のための高品質消耗品を幅広く取り揃えています。すべての研磨消耗品は、厳格な試験によりQATM装置での使用適性が確認されています。

お見積りは無料です!

各商品の「注文データ＆見積依頼」のタブを開いて、お見積りご希望の商品にマークを入れると、見積カートに商品が入ります。商品右欄にマークをいれ、カートに入れると見積依頼リスト作成画面に進みます。コンタクトフォームに必要事項をご記入いただき送信すると、弊社担当者から折り返しお見積りをお送りいたします。

お問い合わせ

必要なアイテムがわからない、または一般的な見積もりを希望する場合は、こちらをご覧ください。

お問い合わせはこちら

Area
Category
Type
Abrasive material
Diameter
Grit
Fixation
Bundle
Reset search

Planar grinding stones

Planar grinding stones for Qgrind XL

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron

粒子サイズ	外径	内径	Abor Size Ø
FEPA standard

95016741

100

356 mm

126mm

38mm

1 個

95017565

150

356 mm

126mm

38mm

1 個

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper

粒子サイズ	外径	内径	Abor Size Ø
FEPA standard

95016746

80

356 mm

126mm

38mm

1 個

95016747

150

356 mm

126mm

38mm

1 個

Multi point dressing diamond for dressing face grinding stones

95016897

マルチ･ダイヤモンド･ドレッシング･ポイント

1 個

Planar grinding stones for Saphir 375

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron
• glued on metal carrier plate

粒子サイズ	外径	内径	Abor Size Ø
FEPA standard

95000180

100

350 mm

90 mm

40 mm

1 個

95000210

150

350 mm

90 mm

40 mm

1 個

95002034

180

350 mm

90 mm

40 mm

1 個

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper
• glued on metal carrier plate

粒子サイズ	外径	内径	Abor Size Ø
FEPA standard

95002223

80

350 mm

90 mm

40 mm

1 個

Inner diameter 120 mm on request

Multi point dressing diamond for dressing face grinding stones

92008759

マルチ･ダイヤモンド･ドレッシング･ポイント

1 個

ダイヤモンド･カップ･グラインダー (カップ砥石)

• for glass fiber reinforced plastics and printed circuit boards
• with galvanic bond

Ø

厚さ

高さ

孔径

粒度

95017782

150 mm

8 mm

21.7 mm

12.7 mm

D120

1 個

95017784

150 mm

8 mm

21.7 mm

12.7 mm

D213

1 個

• for glass, ceramics, rocks, hard metal
• with resin bond

Ø

厚さ

高さ

孔径

粒度

95015123

150 mm

8 mm

21.5mm

12.7 mm

D151

1 個

95015122

150 mm

8 mm

21.5mm

12.7 mm

D64

1 個

95017563

150 mm

8 mm

21.5mm

12.7 mm

D126

1 個

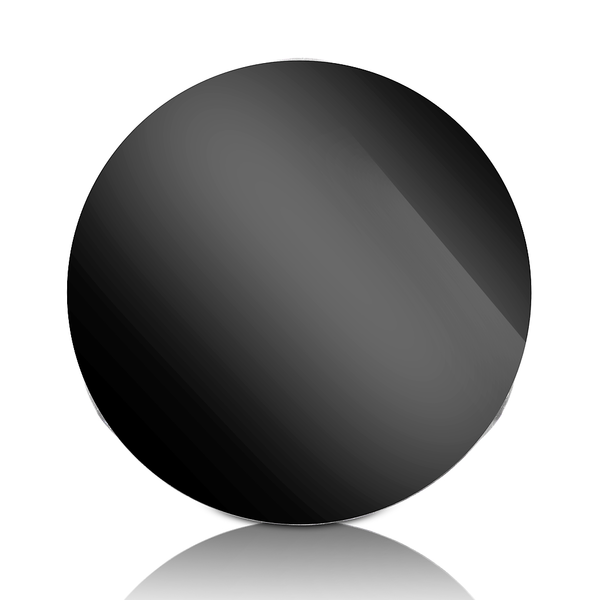

磁気フォイル接着層付

Magnetic foil, normal adhesion
• to apply on working wheel

Ø

厚さ

92008528

200 mm

1 mm

1 個

92005820

250 mm

1 mm

1 個

92005822

300 mm

1 mm

1 個

Magnetic foil, strong adhesion
• to apply on working wheel

Ø

厚さ

95016345

200 mm

1 mm

1 個

95016346

250 mm

1 mm

1 個

95012161

300 mm

1 mm

1 個

95014137

350 mm

1 mm

1 個

Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

Ø

厚さ

95016300

250 mm

2 mm

1 個

95016301

300 mm

2 mm

1 個

GALAXY diamond grinding discs
Bond: Resin

for medium to hard materials
• planar grinding: grey (P80-P100)
• Fixation system: Magnetic foil

品名

Ø

固定方法

95005505

GALAXY diamond grinding disc grey

200 mm

接着キャリア/磁気キャリア

1 個

95004279

GALAXY diamond grinding disc grey

250 mm

接着キャリア/磁気キャリア

1 個

95004280

GALAXY diamond grinding disc grey

300 mm

接着キャリア/磁気キャリア

1 個

95013917

GALAXY diamond grinding disc grey

350 mm

接着キャリア/磁気キャリア

1 個

incl. dressing stone No. 95006603

for medium to hard materials
• planar grinding: red (P100-P120)
• Fixation system: Magnetic foil

品名

Ø

固定方法

95005521

GALAXY diamond grinding disc red

200 mm

接着キャリア/磁気キャリア

1 個

95004310

GALAXY diamond grinding disc red

250 mm

接着キャリア/磁気キャリア

1 個

95004314

GALAXY diamond grinding disc red

300 mm

接着キャリア/磁気キャリア

1 個

95013918

GALAXY diamond grinding disc red

350 mm

接着キャリア/磁気キャリア

1 個

incl. dressing stone No. 95006603

for medium to hard materials
• fine grinding: green (P180-P320)
• Fixation system: Magnetic foil

品名

Ø

固定方法

95005522

GALAXY diamond grinding disc green

200 mm

接着キャリア/磁気キャリア

1 個

95004311

GALAXY diamond grinding disc green

250 mm

接着キャリア/磁気キャリア

1 個

95004315

GALAXY diamond grinding disc green

300 mm

接着キャリア/磁気キャリア

1 個

95013919

GALAXY diamond grinding disc green

350 mm

接着キャリア/磁気キャリア

1 個

incl. dressing stone No. 95006603

for medium to hard materials
• fine grinding: green (P400-P600)
• Fixation system: Magnetic foil

品名

Ø

固定方法

95005523

GALAXY diamond grinding disc blue

200 mm

接着キャリア/磁気キャリア

1 個

95004312

GALAXY diamond grinding disc blue

250 mm

接着キャリア/磁気キャリア

1 個

95004316

GALAXY diamond grinding disc blue

300 mm

接着キャリア/磁気キャリア

1 個

95013920

GALAXY diamond grinding disc blue

350 mm

接着キャリア/磁気キャリア

1 個

incl. dressing stone No. 95006603

for medium to hard materials
• fine grinding: yellow (P800-P1000)
• Fixation system: Magnetic foil

品名

Ø

固定方法

95005524

GALAXY diamond grinding disc yellow

200 mm

接着キャリア/磁気キャリア

1 個

95004313

GALAXY diamond grinding disc yellow

250 mm

接着キャリア/磁気キャリア

1 個

95004317

GALAXY diamond grinding disc yellow

300 mm

接着キャリア/磁気キャリア

1 個

95013921

GALAXY diamond grinding disc yellow

350 mm

接着キャリア/磁気キャリア

1 個

incl. dressing stone No. 95006603

ポラリス M ダイヤモンド研磨ディスク

for medium-hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil

250 mm Ø

品名

粒度

95015016

POLARIS M diamond grinding disc

60µm

1 個

95015017

POLARIS M diamond grinding disc

30µm

1 個

95015018

POLARIS M diamond grinding disc

15µm

1 個

95015019

POLARIS M diamond grinding disc

6µm

1 個

95015020

POLARIS M diamond grinding disc

3µm

1 個

300 mm Ø

品名

粒度

95015041

POLARIS M diamond grinding disc

60µm

1 個

95015042

POLARIS M diamond grinding disc

30µm

1 個

95015043

POLARIS M diamond grinding disc

15µm

1 個

95015044

POLARIS M diamond grinding disc

6µm

1 個

95015045

POLARIS M diamond grinding disc

3µm

1 個

ポラリス H ダイヤモンド研磨ディスク

for hard materials
• incl. cleaning stone No. (95015077)
• Fixation system: Magnetic foil

250 mm Ø

品名

粒度

95015010

POLARIS H diamond grinding disc

125 µm

1 個

95015011

POLARIS H diamond grinding disc

60µm

1 個

95015012

POLARIS H diamond grinding disc

30µm

1 個

95015013

POLARIS H diamond grinding disc

15µm

1 個

95015014

POLARIS H diamond grinding disc

6µm

1 個

95015015

POLARIS H diamond grinding disc

3µm

1 個

300 mm Ø

品名

粒度

95015035

POLARIS H diamond grinding disc

125 µm

1 個

95015036

POLARIS H diamond grinding disc

60µm

1 個

95015037

POLARIS H diamond grinding disc

30µm

1 個

95015038

POLARIS H diamond grinding disc

15µm

1 個

95015039

POLARIS H diamond grinding disc

6µm

1 個

95015040

POLARIS H diamond grinding disc

3µm

1 個

クエーサーダイヤモンド研磨ディスク

for hard materials
• incl. dressing stone No. (95015076)
• Fixation system: Magnetic foil

250 mm Ø

品名

粒度

95015006

QUASAR diamond grinding disc

252µm

1 個

95015007

QUASAR diamond grinding disc

125 µm

1 個

95015008

QUASAR diamond grinding disc

91µm

1 個

95015009

QUASAR diamond grinding disc

46µm

1 個

300 mm Ø

品名

粒度

95015031

QUASAR diamond grinding disc

252µm

1 個

95015032

QUASAR diamond grinding disc

125 µm

1 個

95015033

QUASAR diamond grinding disc

91µm

1 個

95015034

QUASAR diamond grinding disc

46µm

1 個

350 mm Ø

品名

粒度

ベガダイヤモンド研磨ディスク

for hard materials, for planar and pre-grinding
• Fixation system: Magnetic foil

200 mm Ø

品名

粒度

95015001

VEGA diamond grinding disc

125 µm

1 個

95015002

VEGA diamond grinding disc

75µm

1 個

95015003

VEGA diamond grinding disc

54µm

1 個

95015004

VEGA diamond grinding disc

25µm

1 個

95015005

VEGA diamond grinding disc

10µm

1 個

250 mm Ø

品名

粒度

95015026

VEGA diamond grinding disc

125 µm

1 個

95015027

VEGA diamond grinding disc

75µm

1 個

95015028

VEGA diamond grinding disc

54µm

1 個

95015029

VEGA diamond grinding disc

25µm

1 個

95015030

VEGA diamond grinding disc

10µm

1 個

300 mm Ø

品名

粒度

95015051

VEGA diamond grinding disc

125 µm

1 個

95015052

VEGA diamond grinding disc

75µm

1 個

95015053

VEGA diamond grinding disc

54µm

1 個

95015054

VEGA diamond grinding disc

25µm

1 個

95015055

VEGA diamond grinding disc

10µm

1 個

350 mm Ø

品名

粒度

95016235

VEGA diamond grinding disc

125 µm

1 個

95016236

VEGA diamond grinding disc

75µm

1 個

95016237

VEGA diamond grinding disc

54µm

1 個

95016238

VEGA diamond grinding disc

25µm

1 個

95016239

VEGA diamond grinding disc

10µm

1 個

Contero S fine grinding discs

for soft to medium hard materials
• Fixation system: Magnetic foil

品名

Ø

95013194

Contero S fine grinding disc

250 mm

1 個

95013196

Contero S fine grinding disc

300 mm

1 個

Contero H fine grinding discs

for medium to hard materials
• Fixation system: Magnetic foil

品名

Ø

95017605

Contero H fine grinding disc

250 mm

1 個

95017606

Contero H fine grinding disc

300 mm

1 個

クリーニング･ブラシ

• for cleaning of ginding and fine grinding discs, , , , , 1 個

品名

95016623 ナイロン･ブラシ

Adhesive carrier discs, double-sided

Ø

95003607

250 mm

1 個

95003608

300 mm

1 個

before initial use please remove protective foil on both sides

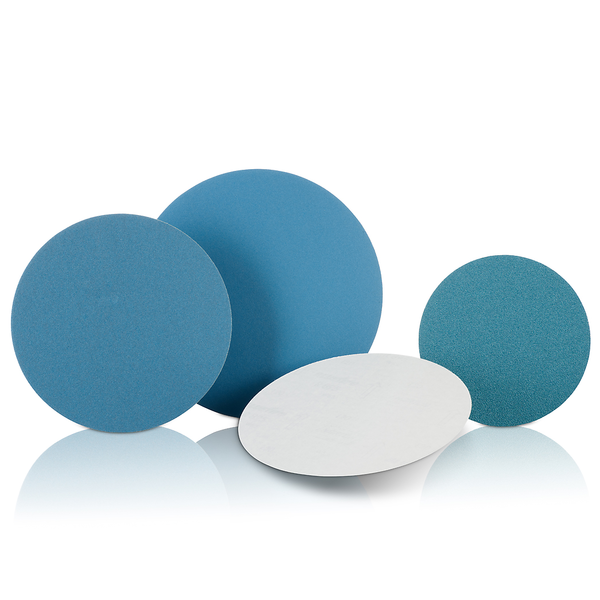

SiC研磨フォイル

• Fixation system: Adhesive carrier disc

250 mm Ø

品名

粒度 FEPA規格

92008557

SiC grinding foil

P120

100 個

92008558

SiC grinding foil

P180

100 個

95000899

SiC grinding foil

P240

100 個

92006305

SiC grinding foil

P320

100 個

92006304

SiC grinding foil

P600

100 個

95000900

SiC grinding foil

P800

100 個

92008559

SiC grinding foil

P1200

100 個

92008639

SiC grinding foil

P2500

100 個

300 mm Ø

品名

粒度 FEPA規格

92008561

SiC grinding foil

P120

100 個

92008658

SiC grinding foil

P180

100 個

95000902

SiC grinding foil

P240

100 個

92006303

SiC grinding foil

P320

100 個

92006302

SiC grinding foil

P600

100 個

95000903

SiC grinding foil

P800

100 個

92008562

SiC grinding foil

P1200

100 個

92008621

SiC grinding foil

P2500

100 個

Silicon carbide grinding paper
with foil backing

• Fixation system: Adhesive carrier disc

250 mm Ø

品名

粒度 FEPA規格

95011928

SiC grinding paper with foil backing

P80

100 個

95011929

SiC grinding paper with foil backing

P120

100 個

95011930

SiC grinding paper with foil backing

P180

100 個

95011931

SiC grinding paper with foil backing

P240

100 個

95011932

SiC grinding paper with foil backing

P320

100 個

95011933

SiC grinding paper with foil backing

P400

100 個

95011934

SiC grinding paper with foil backing

P500

100 個

95011935

SiC grinding paper with foil backing

P600

100 個

95011936

SiC grinding paper with foil backing

P800

100 個

95011937

SiC grinding paper with foil backing

P1000

100 個

95011938

SiC grinding paper with foil backing

P1200

100 個

95011939

SiC grinding paper with foil backing

P2500

100 個

300 mm Ø

品名

粒度 FEPA規格

95011943

SiC grinding paper with foil backing

P80

100 個

95011944

SiC grinding paper with foil backing

P120

100 個

95011945

SiC grinding paper with foil backing

P180

100 個

95011946

SiC grinding paper with foil backing

P240

100 個

95011947

SiC grinding paper with foil backing

P320

100 個

95011948

SiC grinding paper with foil backing

P400

100 個

95011949

SiC grinding paper with foil backing

P500

100 個

95011950

SiC grinding paper with foil backing

P600

100 個

95011951

SiC grinding paper with foil backing

P800

100 個

95011952

SiC grinding paper with foil backing

P1000

100 個

95011953

SiC grinding paper with foil backing

P1200

100 個

95011954

SiC grinding paper with foil backing

P2500

100 個

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

Ø

GALAXY-X-Tap (for using with magnetic foil)

Ø

95017019

200 mm

1 個

95017020

250 mm

1 個

95017021

300 mm

1 個

95017022

350 mm

1 個

SiC研磨紙接着層付

• Fixation system: X-Tap

200 mm Ø

品名

粒度 FEPA規格

92002544

SiC grinding paper

P80

100 個

92002545

SiC grinding paper

P120

100 個

92002546

SiC grinding paper

P180

100 個

92002547

SiC grinding paper

P240

100 個

92002548

SiC grinding paper

P320

100 個

92002549

SiC grinding paper

P400

100 個

92004516

SiC grinding paper

P600

100 個

92002550

SiC grinding paper

P800

100 個

92002551

SiC grinding paper

P1000

100 個

92002638

SiC grinding paper

P1200

100 個

92002761

SiC grinding paper

2400*

100 個

92004561

SiC grinding paper

P2500

100 個

92002762

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

250 mm Ø

品名

粒度 FEPA規格

92001643

SiC grinding paper

P80

100 個

92001644

SiC grinding paper

P120

100 個

92001645

SiC grinding paper

P180

100 個

92004953

SiC grinding paper

P240

100 個

92001647

SiC grinding paper

P320

100 個

92001648

SiC grinding paper

P400

100 個

92001649

SiC grinding paper

P600

100 個

92001650

SiC grinding paper

P800

100 個

92001651

SiC grinding paper

P1000

100 個

92001652

SiC grinding paper

P1200

100 個

92002763

SiC grinding paper

2400*

100 個

92004563

SiC grinding paper

P2500

100 個

92002764

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

300 mm Ø

品名

粒度 FEPA規格

92001654

SiC grinding paper

P80

100 個

92001655

SiC grinding paper

P120

100 個

92001657

SiC grinding paper

P180

100 個

92001658

SiC grinding paper

P240

100 個

92001659

SiC grinding paper

P320

100 個

92001660

SiC grinding paper

P400

100 個

92001661

SiC grinding paper

P600

100 個

92001662

SiC grinding paper

P800

100 個

92001663

SiC grinding paper

P1000

100 個

92001664

SiC grinding paper

P1200

100 個

92002765

SiC grinding paper

2400*

100 個

92004564

SiC grinding paper

P2500

100 個

92002766

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

350 mm Ø

品名

粒度 FEPA規格

95017771

SiC grinding paper

P80

100 個

95017772

SiC grinding paper

P120

100 個

95017773

SiC grinding paper

P180

100 個

95017774

SiC grinding paper

P240

100 個

95017775

SiC grinding paper

P320

100 個

95017776

SiC grinding paper

P400

100 個

95017777

SiC grinding paper

P600

100 個

95017778

SiC grinding paper

P800

100 個

95017779

SiC grinding paper

P1000

100 個

95017780

SiC grinding paper

P1200

100 個

95017781

SiC grinding paper

P2500

100 個

Zirconia alumina grinding papers, self-adhesive

• Fixation system: X-Tap

200 mm Ø

品名

粒度 FEPA規格

92002374

Zirconia alumina grinding paper

P60

25 pcs

92002376

Zirconia alumina grinding paper

P180

25 pcs

250 mm Ø

品名

粒度 FEPA規格

92002382

Zirconia alumina grinding paper

P60

25 pcs

92002383

Zirconia alumina grinding paper

P120

25 pcs

300 mm Ø

品名

粒度 FEPA規格

92002386

Zirconia alumina grinding paper

P60

25 pcs

92002387

Zirconia alumina grinding paper

P120

25 pcs

GALAXY Quick-Tap

GALAXY Quick-Tap (for using with magnetic foil)

Ø

95017587

200 mm

1 個

95017484

250 mm

1 個

95017485

300 mm

1 個

Silicon carbide grinding papers
without adhesive/foil backing

• Fixation system: Quick-Tap or clamping ring

200 mm Ø

品名

粒度 FEPA規格

92001811

SiC grinding paper

P80

100 個

92001812

SiC grinding paper

P120

100 個

92001813

SiC grinding paper

P180

100 個

92001814

SiC grinding paper

P240

100 個

92001815

SiC grinding paper

P320

100 個

92001816

SiC grinding paper

P400

100 個

92001817

SiC grinding paper

P500

100 個

92001818

SiC grinding paper

P600

100 個

92001819

SiC grinding paper

P800

100 個

92001820

SiC grinding paper

P1000

100 個

92001821

SiC grinding paper

P1200

100 個

92002634

SiC grinding paper

2400*

100 個

92004557

SiC grinding paper

P2500

100 個

92002640

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

230 mm Ø

品名

粒度 FEPA規格

92001568

SiC grinding paper

P80

100 個

92001569

SiC grinding paper

P120

100 個

92001570

SiC grinding paper

P180

100 個

92001571

SiC grinding paper

P240

100 個

92001572

SiC grinding paper

P320

100 個

92001573

SiC grinding paper

P400

100 個

92001574

SiC grinding paper

P500

100 個

92001575

SiC grinding paper

P600

100 個

92001576

SiC grinding paper

P800

100 個

92001577

SiC grinding paper

P1000

100 個

92001578

SiC grinding paper

P1200

100 個

92004558

SiC grinding paper

P2500

100 個

92001579

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

250 mm Ø

品名

粒度 FEPA規格

92001581

SiC grinding paper

P80

100 個

92001582

SiC grinding paper

P120

100 個

92001583

SiC grinding paper

P180

100 個

92002369

SiC grinding paper

P240

100 個

92001585

SiC grinding paper

P320

100 個

92001586

SiC grinding paper

P400

100 個

92001587

SiC grinding paper

P500

100 個

92001588

SiC grinding paper

P600

100 個

92001589

SiC grinding paper

P800

100 個

92001590

SiC grinding paper

P1000

100 個

92001591

SiC grinding paper

P1200

100 個

92002636

SiC grinding paper

2400*

100 個

92004559

SiC grinding paper

P2500

100 個

92001592

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

300 mm Ø

品名

粒度 FEPA規格

92001593

SiC grinding paper

P60

100 個

92001594

SiC grinding paper

P80

100 個

92001595

SiC grinding paper

P120

100 個

92001596

SiC grinding paper

P180

100 個

92001597

SiC grinding paper

P240

100 個

92001598

SiC grinding paper

P320

100 個

92001599

SiC grinding paper

P400

100 個

92001600

SiC grinding paper

P500

100 個

92001601

SiC grinding paper

P600

100 個

92001602

SiC grinding paper

P800

100 個

92001603

SiC grinding paper

P1000

100 個

92001604

SiC grinding paper

P1200

100 個

92002637

SiC grinding paper

2400*

100 個

92004560

SiC grinding paper

P2500

100 個

92002154

SiC grinding paper

4000*

100 個

*slurried (uniform orientation of the abrasive particles), for a finer grinding pattern

Grinding papers for mobile grinder and polisher Qpol 30

コランダム研磨紙､マジックテープ裏面

Ø

粒度 FEPA規格

92004285

30mm

P60

100 個

92004286

30mm

P180

100 個

92004288

30mm

P240

100 個

92004287

30mm

P320

100 個

SiC研磨紙､接着層付

Ø

粒度 FEPA規格

92004498

30mm

P400

100 個

92004499

30mm

P600

100 個

92004631

30mm

P1000

100 個

Self-adhesive polishing cloths: view chapter polishing

Grinding belts for Qgrind 100

Aluminum oxide grinding belts, water resistant

寸法

粒度 FEPA規格

92002528

100 x 920 mm

P80

5 個

92002529

100 x 920 mm

P120

5 個

92002530

100 x 920 mm

P180

5 個

92002531

100 x 920 mm

P240

5 個

92004505

100 x 920 mm

P320

5 個

SiC研磨ベルト､耐水性

寸法

粒度 FEPA規格

92002664

100 x 915 mm

P80

5 個

92002665

100 x 915 mm

P120

5 個

92002666

100 x 915 mm

P180

5 個

92002667

100 x 915 mm

P240

5 個

92004613

100 x 915 mm

P320

5 個

92002394

100 x 915 mm

P400

5 個

消耗品 高品質の材料組織分析サンプル作製に

お見積りは無料です!

お問い合わせ

Planar grinding stones

Planar grinding stones for Qgrind XL

White corundum grinding stone • for tool steel (hardened and not hardened), stainless steel, steel and cast iron

SIC grinding stone• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper

Multi point dressing diamond for dressing face grinding stones

Planar grinding stones for Saphir 375

White corundum grinding stone• for tool steel (hardened and not hardened), stainless steel, steel and cast iron• glued on metal carrier plate

SIC grinding stone • for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper• glued on metal carrier plate

Multi point dressing diamond for dressing face grinding stones

ダイヤモンド･カップ･グラインダー (カップ砥石)

• for glass fiber reinforced plastics and printed circuit boards• with galvanic bond

• for glass, ceramics, rocks, hard metal• with resin bond

磁気フォイル 接着層付

Magnetic foil, normal adhesion• to apply on working wheel

Magnetic foil, strong adhesion• to apply on working wheel

Magnetic foil, strongest adhesion• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

GALAXY diamond grinding discsBond: Resin

for medium to hard materials• planar grinding: grey (P80-P100)• Fixation system: Magnetic foil

for medium to hard materials• planar grinding: red (P100-P120)• Fixation system: Magnetic foil

for medium to hard materials• fine grinding: green (P180-P320)• Fixation system: Magnetic foil

for medium to hard materials• fine grinding: green (P400-P600)• Fixation system: Magnetic foil

for medium to hard materials• fine grinding: yellow (P800-P1000)• Fixation system: Magnetic foil

ポラリス M ダイヤモンド研磨ディスク

250 mm Ø

300 mm Ø

ポラリス H ダイヤモンド研磨ディスク

250 mm Ø

300 mm Ø

クエーサー ダイヤモンド研磨ディスク

250 mm Ø

300 mm Ø

350 mm Ø

ベガ ダイヤモンド研磨ディスク

200 mm Ø

250 mm Ø

300 mm Ø

350 mm Ø

Contero S fine grinding discs

Contero H fine grinding discs

クリーニング･ブラシ

Adhesive carrier discs, double-sided

SiC研磨フォイル

250 mm Ø

300 mm Ø

Silicon carbide grinding paper with foil backing

250 mm Ø

300 mm Ø

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

GALAXY-X-Tap (for using with magnetic foil)

SiC研磨紙 接着層付

200 mm Ø

250 mm Ø

300 mm Ø

350 mm Ø

Zirconia alumina grinding papers, self-adhesive

200 mm Ø

250 mm Ø

300 mm Ø

GALAXY Quick-Tap

GALAXY Quick-Tap (for using with magnetic foil)

Silicon carbide grinding paperswithout adhesive/foil backing

200 mm Ø

230 mm Ø

250 mm Ø

300 mm Ø

Grinding papers for mobile grinder and polisher Qpol 30

コランダム研磨紙､マジックテープ裏面

SiC研磨紙､接着層付

Grinding belts for Qgrind 100

Aluminum oxide grinding belts, water resistant

SiC研磨ベルト､耐水性

消耗品高品質の材料組織分析サンプル作製に

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper

White corundum grinding stone
• for tool steel (hardened and not hardened), stainless steel, steel and cast iron
• glued on metal carrier plate

SIC grinding stone
• for sintered materials (low- and unalloyed), aluminum, chilled cast iron, copper
• glued on metal carrier plate

• for glass fiber reinforced plastics and printed circuit boards
• with galvanic bond

• for glass, ceramics, rocks, hard metal
• with resin bond

磁気フォイル接着層付

Magnetic foil, normal adhesion
• to apply on working wheel

Magnetic foil, strong adhesion
• to apply on working wheel

Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

GALAXY diamond grinding discs
Bond: Resin

for medium to hard materials
• planar grinding: grey (P80-P100)
• Fixation system: Magnetic foil

for medium to hard materials
• planar grinding: red (P100-P120)
• Fixation system: Magnetic foil

for medium to hard materials
• fine grinding: green (P180-P320)
• Fixation system: Magnetic foil

for medium to hard materials
• fine grinding: green (P400-P600)
• Fixation system: Magnetic foil

for medium to hard materials
• fine grinding: yellow (P800-P1000)
• Fixation system: Magnetic foil

クエーサーダイヤモンド研磨ディスク

ベガダイヤモンド研磨ディスク

Silicon carbide grinding paper
with foil backing

SiC研磨紙接着層付

Silicon carbide grinding papers
without adhesive/foil backing
