消耗品 高品質の材料組織分析サンプル作製に

Dia-COMPLETE Poly,
All-In-One diamond suspension

Dia-COMPLETE Mono,
All-In-One diamond suspension

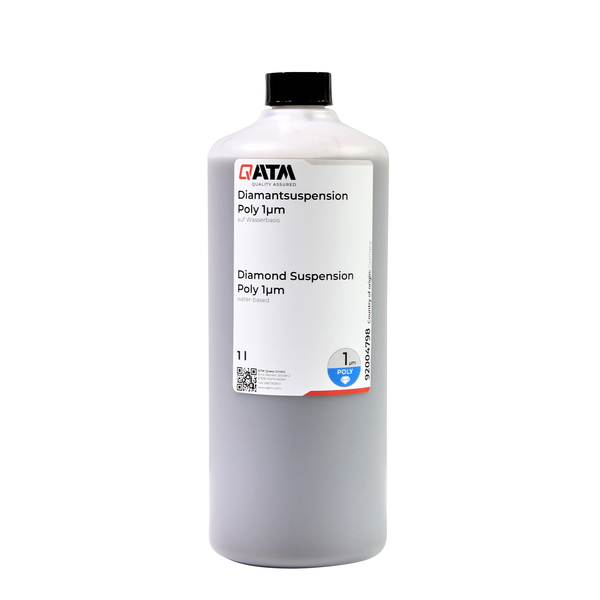

ダイヤモンド懸濁液 多結晶

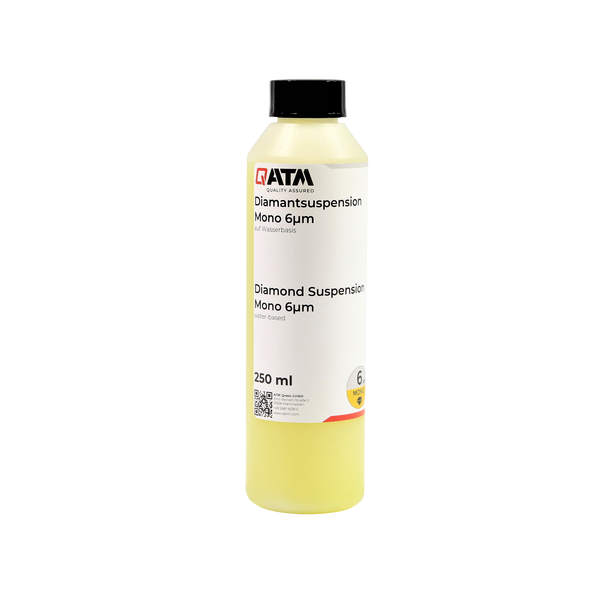

ダイヤモンド懸濁液 単結晶

Diamond suspension (alcohol-based)
polycrystalline

Diamond suspension (alcohol-based)
monocrystalline

Diamond suspension (oil-based)
polycrystalline

アクセサリー

スプレー･ノズル

Qdoser ONE dosing system for suspensions

ダイヤモンド･スプレー 多結晶

ダイヤモンド･ペースト 多結晶

ダイヤモンド･ペースト 単結晶

ダイヤモンド･スティック 単結晶

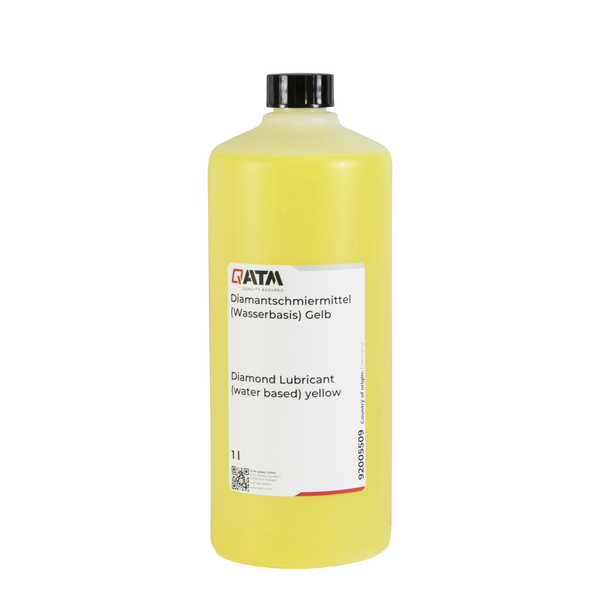

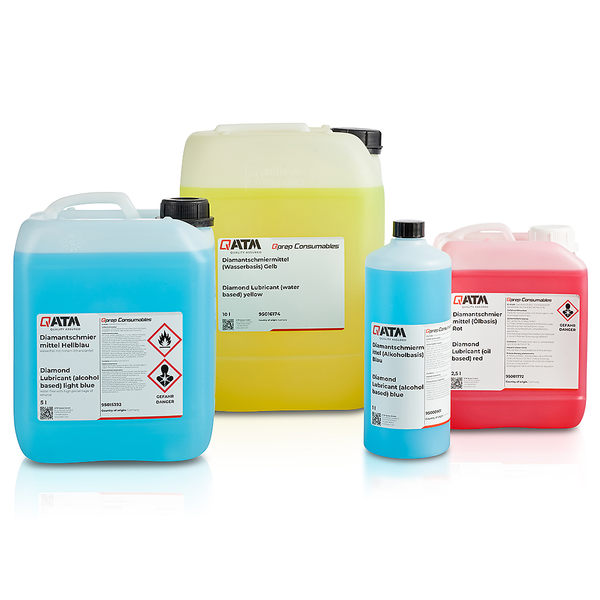

ダイヤモンド･ルーブリカント, ダイヤモンド懸濁液/ペースト使用時に滴下

ダイヤモンド･ルーブリカント濃縮液

Ethanol

最終仕上げ懸濁液

Fine polishing suspension (Al2O3)
• does not crystallize
•for ferrous materials, polymers, composites, PCB, rocks and minerals

Colloidal silica
• for polishing, also mixable with diluted etchant
•

Colloidal silica
• for titanium, nickel, tin and its alloys

Water-free fine polishing suspension
• e.g. for magnesium, zinc

アルミナ懸濁液 溶融

磁気フォイル 接着層付

Magnetic foil, normal adhesion
• to apply on working wheel

Magnetic foil, strong adhesion
• to apply on working wheel

Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

ギャラクシー･ポリッシング･クロス 磁気固定用

GALAXY – ALPHA
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: Magnetic foil

GALAXY – BETA
• Suitable for pre-polishing
• Hard synthetic cloth
• Materials with high hardness, steel, grey cast iron, hard metal, ceramics
• For use with diamond grain size: 15/9/6 µm
• Fixation system: Magnetic foil

GALAXY – DELTA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

GALAXY - GAMMA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK]
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

GALAXY – PHI
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: Magnetic foil

GALAXY – SIGMA
• Suitable for intermediate and end polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: Magnetic foil

GALAXY – ETA
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: Magnetic foil

GALAXY – IOTA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• For all materials, especially hard materials
• For use with diamond grain size: 3/1 μm
• Suitable for oxide suspensions
• Fixation system: Magnetic foil

GALAXY – ZETA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• For all materials
• For use with diamond grain size: 3/1 µm
•, Suitable for oxide suspensions as well as alumina
• Fixation system: Magnetic foil

GALAXY – OMEGA
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
•, For all materials
•, Suitable for oxide suspensions
• Fixation system: Magnetic foil

GALAXY – LAMBDA-HR-• Suitable for fine polishing with fine polishing suspension-HR-• Brushed, structured synthetic cloth (chemical resistant)-HR-• For all materials-HR-•, Suitable for oxide suspensions as well as alumina-HR-• Fixation system: Magnetic foil

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

GALAXY-X-Tap (for using with magnetic foil)

ポリッシング･クロス 接着層付

ALPHA – Polishing cloth
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: X-Tap

BETA – Polishing cloth-HR-• Suitable for pre-polishing-HR-• Hard synthetic cloth-HR-• Materials with high hardness, steel, grey cast iron, hard metal, ceramics-HR-• For use with diamond grain size: 15/9/6 µm-HR-• Fixation system: X-Tap

DELTA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

GAMMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK],
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

PHI – Polishing cloth
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: X-Tap

SIGMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: X-Tap

ETA – Polishing cloth
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: X-Tap

IOTA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Long flocked, soft synthetic cloth
• for all materials, especially hard materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions
• Fixation system: X-Tap

ZETA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• for all materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

KAPPA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft polishing felt
• For all materials
• Suitable for alumina
• Fixation system: X-Tap

OMEGA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions
• Fixation system: X-Tap

LAMBDA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Brushed, structured synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

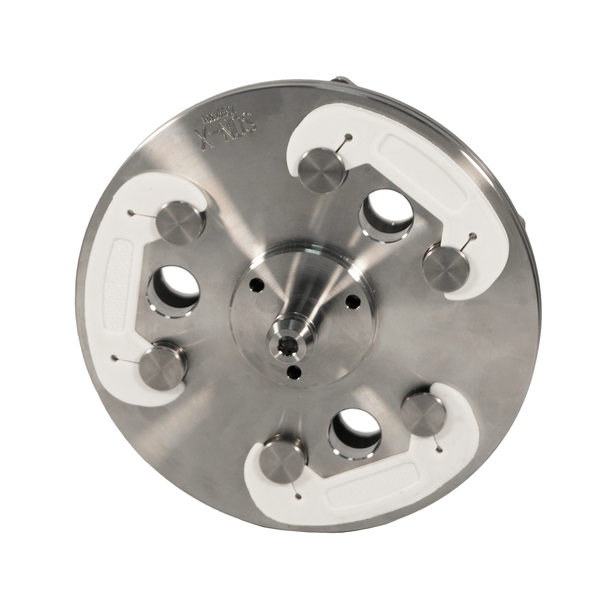

Media carrier plate

フィルター･インサート

Filter inserts for settling tank
(until year of construction 2012)

Filter inserts for settling tank
(from year of construction 2013)

Filter cartridges for Qpol 300 BOT

Filter cartridge for circulation filter system of the ultrasonic cleaning tank
