研削・研磨機 Qpol 250 M1 / M2

The Qpol 250 M1 and Qpol 250 M2 are manual, single-wheel and double-wheel grinding and polishing machines for working wheels Ø 200/250 mm.

The start / stop button with illuminated status display and the rotary switch with scale and integrated boost button allow for intuitive operation. A spin cycle function (Cleaning Boost) helps to spin dry the grinding and polishing medium at 750 rpm at the end of the preparation process within 3 seconds and then turns off the device.

The particularly strong, speed-controlled drive makes this model suitable for all preparation steps and materials. In addition, the working disc can be operated in clockwise / counter-clockwise rotation. The impact-resistant plastic bowl, the powder-coated aluminium housing and the high-quality components inside the device are the basis for smooth running and best preparation results.

The robust device can be combined with the manual dosing system Qdoser GO or Qdoser ONE and thus offers a high degree of flexibility for sample preparation and operating convenience.

長所

Robust and durable: Powerful drives, impact-resistant plastic trough and powder-coated aluminum housing
Flexibility: Single-spindle (M1) or twin-spindle (M2) machine variant with adjustable direction of rotation
Simple operation: large rotary knob for setting the speed
Convenient cleaning: Cleaning boost function and easily accessible sanding trough
Automation: Can be retrofitted with Qpol GO polishing head and Qdoser GO dosing system

研削・研磨機 Qpol 250 M1 / M2 納得のいくメリット

Robust pullout water hose

The pull-out flexible hose extension allows the tap to be used for cleaning the entire working area and the basin. It can be conveniently operated with one hand.

Ergonomically shaped splash guard ring

The ergonomically shaped splash guard ring significantly reduces splashing. It may also be used as a hand rest for longer preparations. The recessed grips allow the grinding and polishing medium to be changed while the ring is still attached. The modified working wheel, the generously designed basin and a loosely fitted splash guard ring ensure a high degree of operator safety.

Single disc design

Thanks to the innovative mounting system, it locks itself automatically. After lifting it off, all parts underneath are readily accessible for easy and time-saving cleaning of the machine.

Optional grinding/polishing head Qpol Go

The perfect solution for automated sample preparation. The Qpol 250 M machines can be equipped with the optional Qpol Go grinding/polishing head.

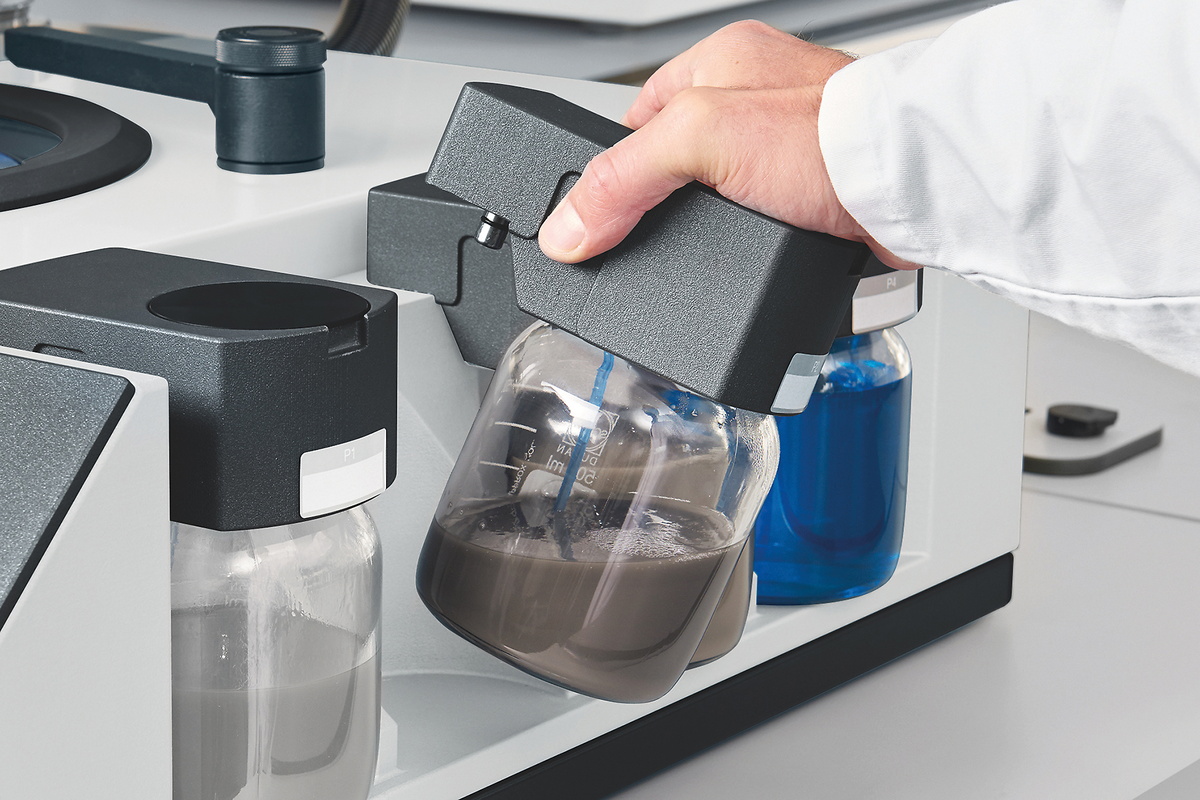

Optional dosing unit Qdoser Go and Qdoser One

The manual grinders and polishers can be combined with the automatic dosing system Qdoser Go or the manual dosing solution Qdoser One, thus offering a high degree of flexibility for sample preparation and ease of use.

Dry in the blink of an eye Boost function

At the end of the preparation procedure, the boost function may be activated to discharge any liquid left on the grinding and polishing medium in 3 seconds at 750 rpm.

Perfect grinding and polishing – Consumables by QATM

Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.

製品ラインナップ "研削"製品ラインナップ "ポリッシング"

研削・研磨機 Qpol 250 M1 / M2 製品仕様

研削・研磨機 Qpol 250 M1

作業ホイール	ø200 / 250mm
回転速度	30~600rpm 無段変速
接続ロード	1.6 kVA
駆動電力 (メイン駆動)	0.55 kW (S1)
WxHxD	511x265x710mm
重量	~25-30kg
給水接続	上水接続用x1 R½" 最大6bar
供給システム (オプション)	Qドーザー GOまたはQドーザー ONE

研削・研磨機 Qpol 250 M2

作業ホイール	ø200 / 250mm
回転速度	30~600rpm 無段変速
接続ロード	1.6 kVA
駆動電力 (メイン駆動)	0.55 kW (S1)
WxHxD	901x265x710mm
重量	~45-49kg
給水接続	上水接続用x1 R½" 最大6bar
供給システム (オプション)	Qドーザー GOまたはQドーザー ONE
