The Vickers / Knoop / Brinell / Rockwell hardness tester series Qness 10 / 60 takes micro hardness testing to a whole new level: The high-end laboratory devices of the latest generation combine the best of both worlds – hardness testing and microscopy without compromise and with maximum operating convenience. The revolutionary optical system with color camera provides reproducible and reliable results every time.
The classic "Qness 10 / 60 M" model of this Vickers / Knoop / Brinell / Rockwell hardness tester promises perfect semi-automatic operation and high precise positioning control of the Z axis. The combination of micro hardness tester and microscope makes this entry-level model a convincing solution for the laboratory.
QATM micro hardness testers seamlessly integrate with the Verder Scientific IoT platform, featuring remote real-time monitoring, live notifications, effortless backups and automatic software updates.
商品動画
AR-Model - Visit the page with your smartphone or scan the QR code under "View in Room" and experience the 3D model in the real world!
QATM hardness testers accurately analyze according to all standard test methods and cover a wide spectrum.
The electronically controlled, fully automated test cycles ensure fast, precise hardness testing, as well as fast method changes and automatic detection of the focal plane. With the Ready to Test package all Vickers test methods are possible with the standard scope of delivery.
Vickers
DIN EN ISO 6507, ASTM E-384, ASTM E92
Knoop
DIN EN ISO 4545, ASTM E-384, ASTM E92
Brinell
DIN EN ISO 6506, ASTM E-10
変換機能を内蔵
DIN EN ISO 18265, DIN EN ISO 50150, ASTM E-140
Qness 60 M/A+/ all Vickers test methods possible with standard scope of delivery
✓ Qness 10 M/A+ with standard scope of delivery HV0.02 to HV10 possible.
* 規格に準拠していない
All QATM hardness testers with QpixControl2 and QpixT2 software seamlessly integrate into the Verder Scientific IoT platform, providing enhanced functionality and seamless connectivity.
The QATM-developed, in-house manufactured lens system sets new standards. As well as providing crystal clear image quality for hardness testing, Koehler illumination uses white LED light and motor-operated aperture shuttering to produce ideal contrast, even for high magnification images.
Experienced metallurgists agree the image quality provided by the Qness 10 / 60 M is comparable in all aspects with that of established sophisticated microscopes. The up-to-date concept and new lenses in the optic system enable the device to completely meet even the strictest physical ‘test system definition’ requirements in compliance with DIN EN ISO6507-1/2:2018.
垂直方向の動きを2つの軸に分散させることで、決定的なメリットが得られます。1つ目のZ軸ではダイナミックなモーションコントロールが可能で、圧子を試験面に向けて最大30mm/sで素早く便利に配置することができます。QATMシステムに追加された第2のZ軸は、高解像度の位置決めシステムであり、力の適用と集中をより正確に行うことができます。
ビッカース/ヌープ/ブリネル硬さ試験機の最新型タレットには、最大8種類のテストダイヤモンドやレンズを取り付けることができます。コンパクトな構造でありながら、20°の角度がついているため、試験室での優れた視認性を保証します。
ハイライト 新たに開発された硬さ試験モジュールは、モジュール式圧子ホルダーとして、ブリネル硬さ試験機やヌープ硬さ試験機の納入後、いつでもプラグアンドプレイで後付けすることができます。
In addition to the Vickers, Knoop and Brinell optical methods, Rockwell measurements can now also be carried out with the new micro hardness testers. A special Rockwell test module has been developed for this purpose.
革新的なCAS（Collision Avoiding System）技術は、衝突や操作ミスの影響を可視化する予測的な3Dモーション計算により、デバイス内の機械部品を保護します。
The digital caliper is compatible with the Qpix Control2 system and reads the dimensions, height and diameter of components wirelessly and at the push of a button, entering them into the software. The test head height control in the A+ hardness tester enables the test height to be reached completely automatically with no need for manual input.
QATM sample holders are designed to ensure accuracy and repeatability. In combination with the digital slide and data feedback, the machine produces perfect measurement readings

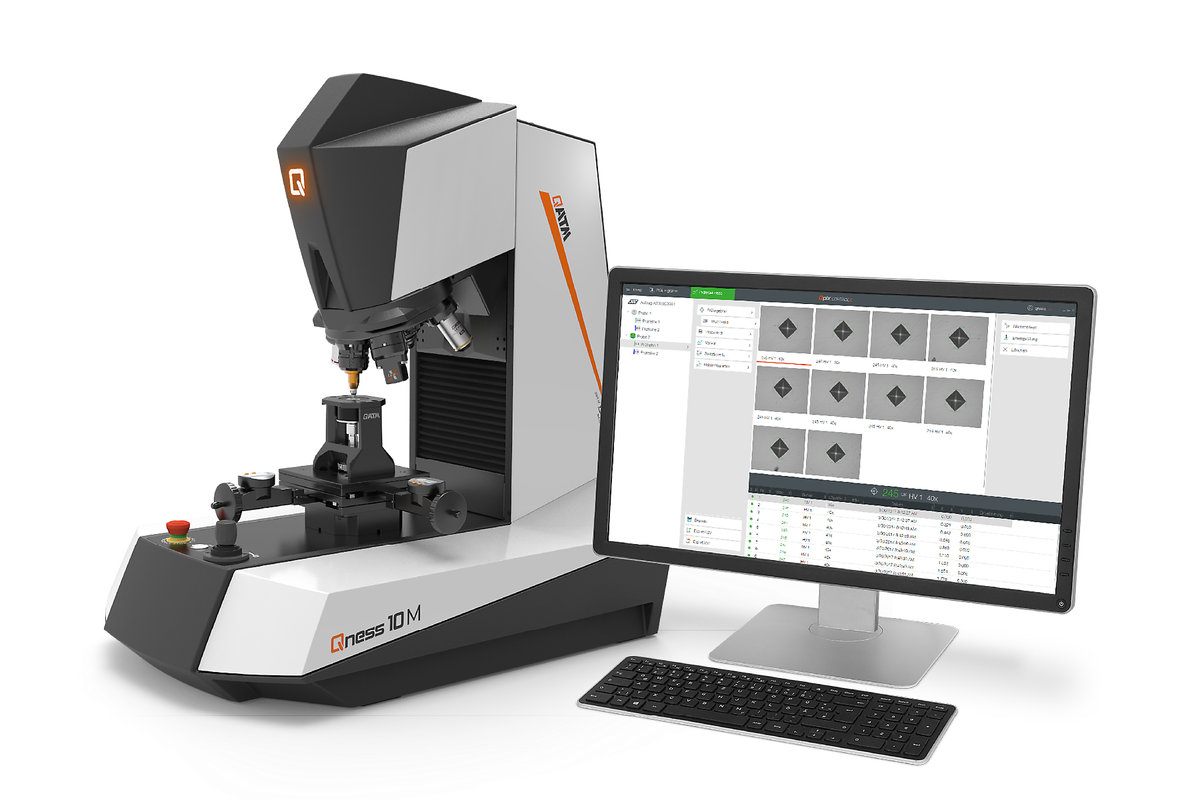

The Qpix Control2 M-Version of the intuitively-operated software is included with the Qness 10/60 M to provide sophisticated functionality tailored to the requirements of semi-automatic hardness testing devices. Clearly organized batch management and the effective use of templates from a broad span of testing projects, test result structuring and a complete range of background project information. The easily-generated templates include all the required information on test patterns, test methods, item names and user field details.

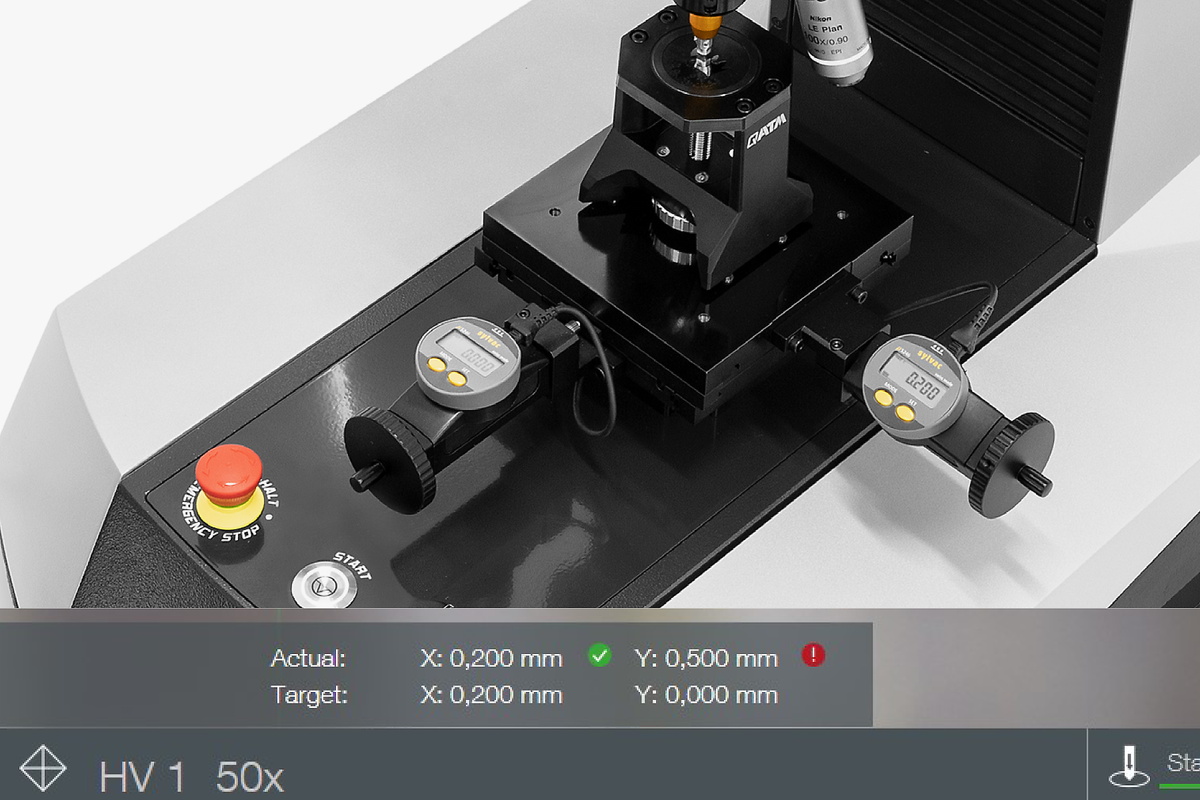

固定された数のテストポイントを持つテストプログラムを事前に連続して定義することができます。必要に応じて、手動スライド、デジタルマイクロメータスピンドル、手動CHDプログレッションに使用されるポジショナルリターンも備えています。
Unsurpassed in single-piece testing and limited series tests on items of all sizes: Simple operability and optional additions for microscopy make QATM Qness 10/60 M a unique, high-quality, all-round package.
Optimized testing parameters and shorter intervals for serial autofocus, brightness regulation and image analysis, facilitate unbeatable cycle times during everyday operation involving hardness testing devices of the new micro hardness tester product line; and it’s even faster than the previous model. A further benefit of the new machine concept is the emphasis on reduced noise emissions in operation and motion, making it particularly suitable for laboratory work.
QATMのベースモデルには、いくつかの省力化機能がすでに搭載されています。
表面荷重検出条件を設定できるので、「最適ではない」表面に対する硬さ試験用試料作製が減少します。また、危険な表面（エッチング、研削など）に対する自動荷重検出も可能になります。
The illuminated QATM logo displays the current device status at a glance. The range of flash intervals indicates whether the device is operating automatically or is free to be used for new tasks for staff all around the lab. Furthermore, not only does the LED test space lighting, installed as standard, allow samples and sample holders to be set up correctly, in the M version it guarantees uniform light intensity for working area.

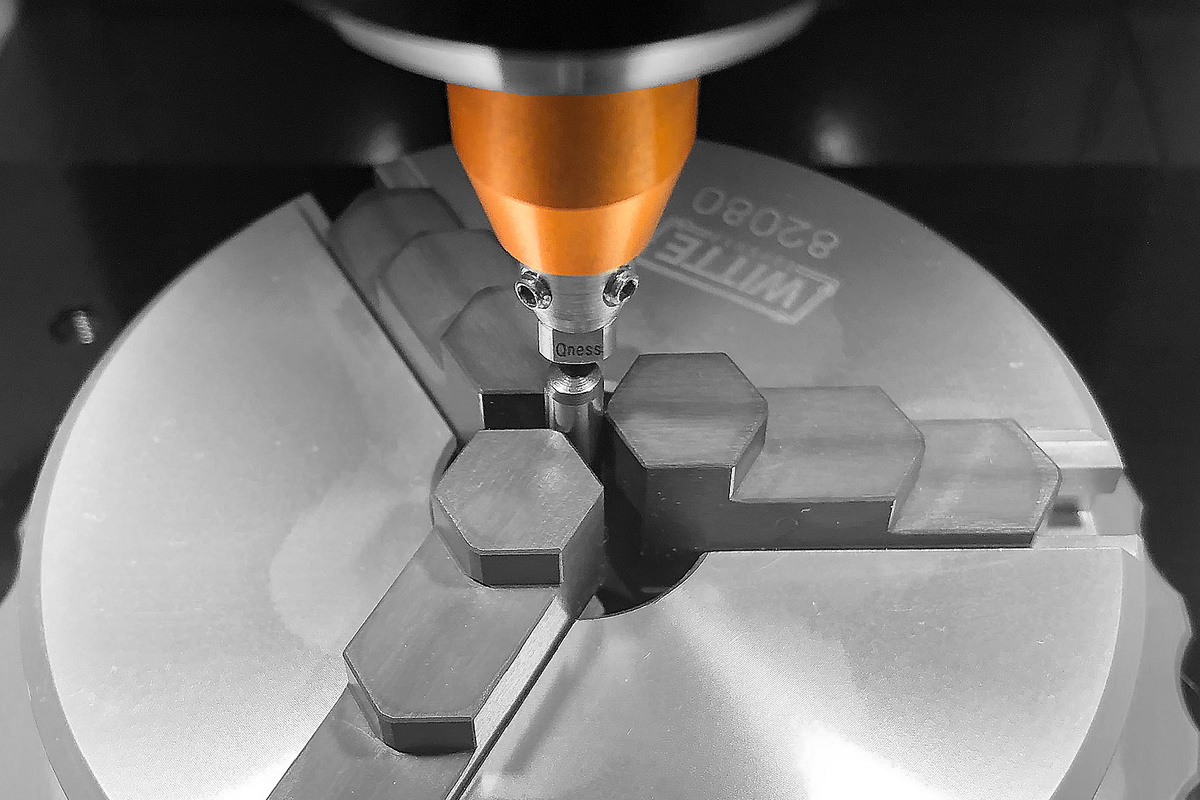

クランプフォースリミッターを内蔵した新設計のホルダーにより、試料を確実にクランプすることができ、試料のセンタリングや位置決めが容易になりました。また、ボールジョイント付きのプレートは、平らにできない試料をクランプし、分析中の傾きやスライドを防ぎます。1、4、8ポジションのホルダーと、メートル法とインペリアル法の幅広いサンプル径に対応したアダプターリングをご用意しています。

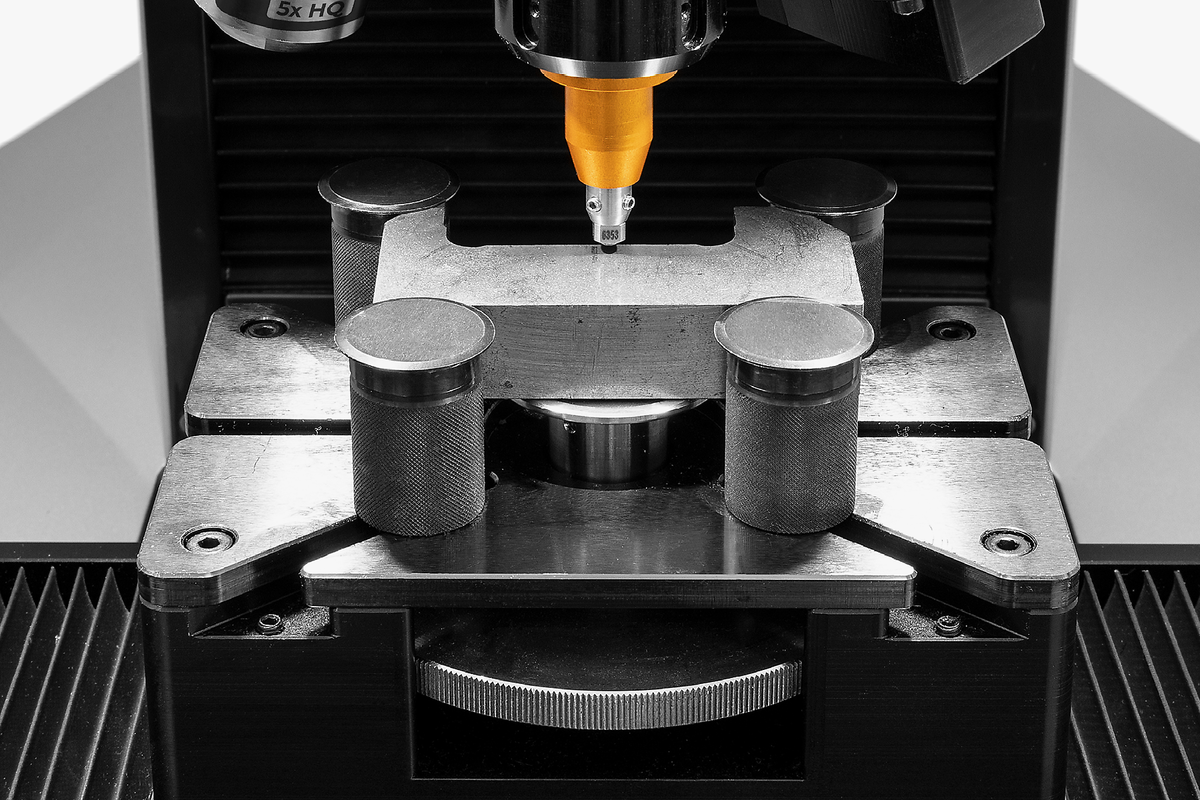

Components of almost all geometrical shapes can be fitted into the universal sample holder. Four clamping bolts can be set variably in various T-slots.
QATMは、複雑な要件やクランプ装置に関するアドバイスのために最適な場所です！お客様のために、アドバイス、考案、カスタマイズ、ソリューションの実装をさせていただきます。信頼できる結果を保証できるのは、適切なコンポーネントのクランプソリューションだけです。
The intuitive Qpix Control2 M-Version software is included with each Vickers / Knoop / Brinell / Rockwell hardness tester Qness 10 / 60 M to provide sophisticated functionality tailored to the requirements of semi-automatic hardness testing devices. Clearly organized batch management and the effective use of templates from a broad span of testing projects, test result structuring and a complete range of background project information. The easily generated templates include all the required information on test patterns, test methods, item names and user field details.
The machine moves automatically to the height of the sample holder.
Speedy row set-up: Drag the row of test points.
該当の硬さ試験規格の試験法に従って、完全自動で試験が実施されます。
Based on the selected method (e.g. HV10), the suitable hardness range is displayed for each lens, which can be measured. The most suitable lens is also highlighted.

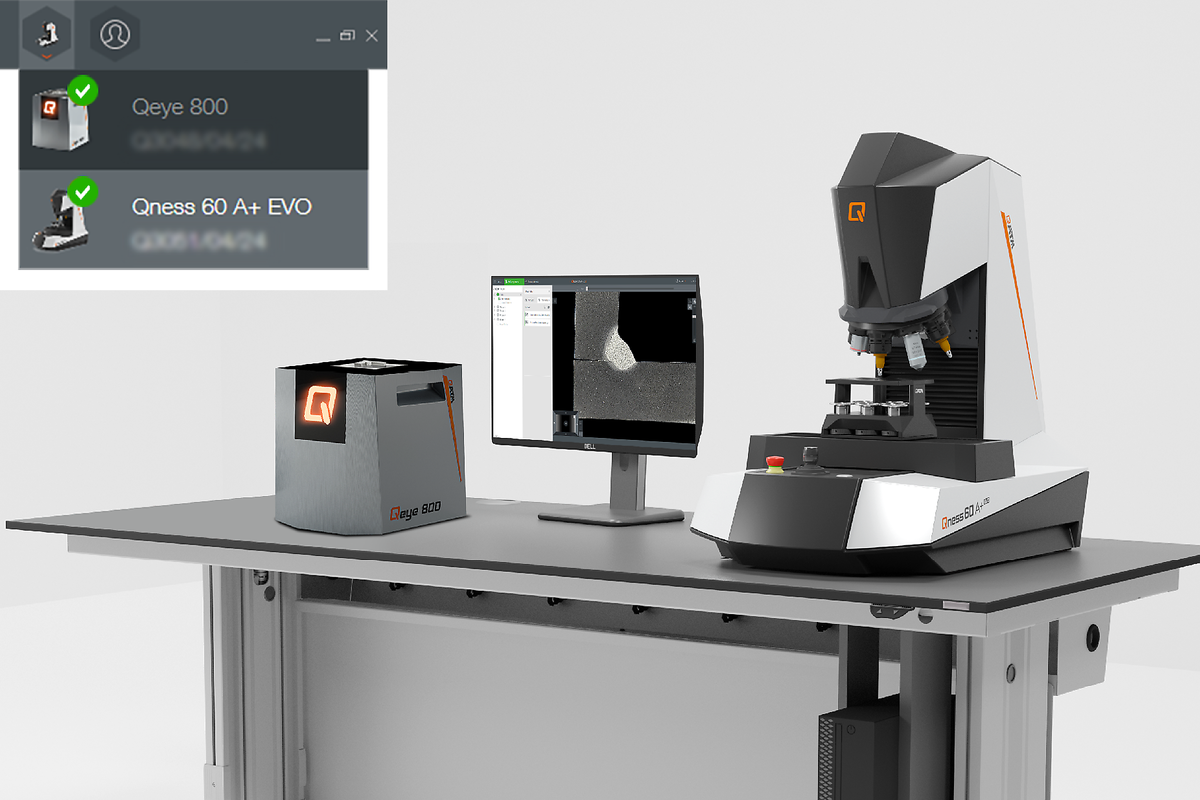

With the Qpix Control 2 software, several QATM devices (for example a Qeye 800 and a Qness 60 A+ EVO) can be operated with the same PC system. It is easy to switch back and forth between the two devices in the software.
Qpix software platforms support barcode and QR code readers. Whether simply inserting header files (serial), managing the complete integration of reading devices for the automatic selection of templates, or calling up data from superordinate systems (optional) – barcode/QR code readers simplify work procedures for the tester, while also preventing operating errors.
The intuitive and user-friendly Qpix INSPECT software functionality provides a comprehensive toolbox for microscopic evaluations and result documentation. The multifunctional software can be customized for customer-specific measuring tasks and complemented with add-on modules.
Qconnectは、QATM Qpix Control2ソフトウェアのインターフェイスで、シリアル製造、オープンXMLインターフェイス（双方向）、QDAS Plug-In+などの事前に指定されたプラグインソリューションから、QATMが完全に実装するお客様固有の接続ソリューションまで、デバイス間接続の完全なポートフォリオをお客様に提供します。あらゆるアプリケーション要件に対応する専門的なソリューションをご用意しています。
QATM Calibration Managerは、自由に設定できる間隔で、必要な試験をオペレータに通知します。試験結果は、ボタンを押すだけで進行中の統計記録に追加されます。
プレミアムな品質。DIN EN ISOおよびASTMに準拠した独立したDAkkS（ISO/IEC 17025）校正（定期的な規格に準拠した試験のためのソフトウェアを含む）。
The Qpix Control 2 software supports user login using an external NFC reader. Depending on the NFC tag/card, the customer‘s existing access cards can also be programmed in, for example.
| 試験荷重範囲 | Qness 10 M: 20 gf - 10 kgf (0.196 - 98.07 N) Qness 60 M: 0.25 gf - 62.5 kgf (0.00245 - 612.92 N) |
| 試験方式 | Vickers, Knoop, Brinell, Rockwell (option) |
| 試験シーケンス | 完全自動 / 電子荷重制御 |
| Z-軸 | Dynamic, automated (CAS-Technic) |
| Z-axis travelling distance | 150 mm (5.91“); Option: 260 mm (10,2“) |
| スロート深さ | 170 mm (6.69“) |
| ツール･ポジション | 8-fold motorized tool changer max. 3 hardness testing modules, max. 7 lenses |
| カメラ･システム | 5 Mpixel - CMOS color, USB3.0 |
| Optical system | Upright microscope with Koehler lighting |
| Aperture diaphragm | 電動 |
| レンズ | XLED 2x, 2.5x, 5x, 10x, 20x, 50x, 100x |
| Lens types | Standard (Achromat) and High Quality (Semi-apochromat) for hardness testing and microscopy XLED for optimised Brinell hardness testing |
| 視野（装置による） | 0.074x0.055 mm (100x) to 2.80x2.10 mm (XLED 2) |
| 試験アンビル / XYクロス･スライド | Option: manual cross slide; Reduces test height by 26 mm |
| テーブル･サイズ | Ø 100 mm (3.94“) (cross slide: 135 x 135 mm) |
| Traverse path at cross slide | X 25, Y 25 mm (0.98 x 0.98“); Option X 50 x Y 50 mm (1.97 x 1.97“) |
| Control elements | Emergency stop, Start button, Joystick Z-axis |
| ソフトウェア | Qpix Control2 "M" |
| ワークピースの最大重量 | 50 kg (110 lbs) |
| 標準機の重量 | 55 kg (121.3 lbs) |
| Included basic equipment | Indenter Vickers ASTM + DAkkS; Lens 5x, 50x |
| インターフェイス | 1xUSB3.0 |
| 電源 | 100 – 240 V ~1/N/PE, 45-65 Hz |
